Description
| Model | Outside cup (inches/mm) |
Inside cup (inches/mm) |
Cup depth (inches/mm) |
Drill venturi (inches/mm) |
Length (inches/mm) |
|---|---|---|---|---|---|
| Endorsee series | |||||
| E1 Senescu |
1.073 / 27.25 | 0.689 / 17.50 | 0.474 / 12.04 | 0.144 / 3.66 | 3.450 / 87.63 |
| E1.7 Roman |
1.077 / 27.36 | 0.715 / 18.16 | 0.444 / 11.28 | 0.144 / 3.66 | 3.450 / 87.63 |
| E2 Michelou |
1.081 / 27.46 | 0.689 / 17.50 | 0.437 / 11.10 | 0.149 / 3.78 | 3.450 / 87.63 |
| E3/3C | 1.081 / 27.46 | 0.677 / 17.20 | 0.430 / 10.92 | 0.140 / 3.56 | 3.450 / 87.63 |
| E3.1 JWM |
1.081 / 27.46 | 0.674 / 17.12 | 0.430 / 10.92 | 0.140 / 3.56 | 3.450 / 87.63 |
| E4 Young |
1.068 / 27.13 | 0.657 / 16.69 | 0.429 / 10.90 | 0.144 / 3.66 | 3.450 / 87.63 |
| E5 Shew #2 |
1.060 / 26.92 | 0.662 / 16.81 | 0.427 / 10.85 | 0.144 / 3.66 | 3.450 / 87.63 |
| E6 Alpert |
1.056 / 26.82 | 0.674 / 17.12 | 0.425 / 10.80 | 0.144 / 3.66 | 3.450 / 87.63 |
| E8 Baptist |
1.105 / 28.07 | 0.668 / 16.97 | 0.419 / 10.64 | 0.140 / 3.56 | 3.450 / 87.63 |
| E8.4 Shew #1.75 |
1.057 / 26.85 | 0.662 / 16.81 | 0.409 / 10.39 | 0.140 / 3.56 | 3.450 / 87.63 |
| E8.7 Gillette |
1.097 / 27.86 | 0.643 / 16.33 | 0.399 / 10.13 | 0.152 / 3.86 | 3.450 / 87.63 |
| E9 Klein |
1.072 / 27.23 | 0.682 / 17.32 | 0.396 / 10.06 | 0.144 / 3.66 | 3.450 / 87.63 |
| E9.1 Shew #1.5 |
1.057 / 26.85 | 0.662 / 16.81 | 0.395 / 10.03 | 0.140 / 3.56 | 3.450 / 87.63 |
| E9.3 Braun |
1.060 / 26.92 | 0.645 / 16.38 | 0.392 / 9.96 | 0.140 / 3.56 | 3.450 / 87.63 |
| E9.6 JWM |
1.081 / 27.46 | 0.674 / 17.12 | 0.384 / 9.75 | 0.140 / 3.56 | 3.450 / 87.63 |
| E10 B Findley |
1.083 / 27.51 | 0.678 / 17.22 | 0.381 / 9.68 | 0.140 / 3.56 | 3.450 / 87.63 |
| E10.3 Shew #1.25 |
1.057 / 26.85 | 0.662 / 16.81 | 0.380 / 9.65 | 0.140 / 3.56 | 3.450 / 87.63 |
| E11 Tyzik |
1.080 / 27.43 | 0.670 / 17.02 | 0.378 / 9.60 | 0.140 / 3.56 | 3.450 / 87.63 |
| E12 Vizzutti |
1.085 / 27.56 | 0.670 / 17.02 | 0.374 / 9.50 | 0.140 / 3.56 | 3.450 / 87.63 |
| E12.2 Vax #1 |
1.065 / 27.05 | 0.654 / 16.61 | 0.373 / 9.47 | 0.144 / 3.66 | 3.450 / 87.63 |

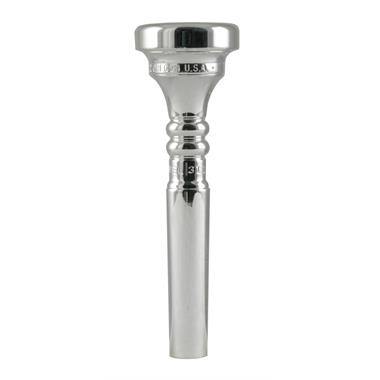

| E12.4 Ingram |
1.057 / 26.85 | 0.651 / 16.54 | 0.373 / 9.47 | 0.140 / 3.56 | 3.450 / 87.63 |
| E13 C Findley |
1.091 / 27.71 | 0.681 / 17.30 | 0.372 / 9.45 | 0.140 / 3.56 | 3.450 / 87.63 |
| E13.8 Vax #2 |
1.067 / 27.10 | 0.644 / 16.36 | 0.370 / 9.40 | 0.140 / 3.56 | 3.450 / 87.63 |
| E14 Shew #1 |
1.057 / 26.85 | 0.662 / 16.81 | 0.370 / 9.40 | 0.140 / 3.56 | 3.450 / 87.63 |
| E14.1 | 1.065 / 27.05 | 0.654 / 16.61 | 0.369 / 9.37 | 0.144 / 3.66 | 3.450 / 87.63 |
| E15 Rinaldo |
1.060 / 26.92 | 0.650 / 16.51 | 0.368 / 9.35 | 0.147 / 3.73 | 3.450 / 87.63 |
| E16 Candoli |
1.090 / 27.69 | 0.608 / 15.44 | 0.364 / 9.25 | 0.140 / 3.56 | 3.450 / 87.63 |
| E17 O'Donnell |
1.071 / 27.20 | 0.644 / 16.36 | 0.363 / 9.22 | 0.147 / 3.73 | 3.450 / 87.63 |
| E18 Miyashiro |
1.084 / 27.53 | 0.645 / 16.38 | 0.361 / 9.17 | 0.147 / 3.73 | 3.450 / 87.63 |
| E19 JWM |
1.070 / 27.18 | 0.674 / 17.12 | 0.352 / 8.94 | 0.140 / 3.56 | 3.450 / 87.63 |
| 7CW | 1.095 / 27.81 | 0.668 / 16.97 | 0.480 / 12.19 | 0.144 / 3.66 | 3.450 / 87.63 |
| 6C | 1.055 / 26.80 | 0.664 / 16.87 | 0.473 / 12.01 | 0.147 / 3.73 | 3.450 / 87.63 |
| 1¼C | 1.082 / 27.48 | 0.687 / 17.45 | 0.457 / 11.61 | 0.144 / 3.66 | 3.450 / 87.63 |
| G10S | 1.070 / 27.18 | 0.668 / 16.97 | 0.353 / 8.97 | 0.140 / 3.56 | 3.450 / 87.63 |
| G10SW | 1.095 / 27.81 | 0.668 / 16.97 | 0.353 / 8.97 | 0.140 / 3.56 | 3.450 / 87.63 |
